Spec Sheets
Falcon Hot Boxes can make use of any truck that you currently have in your fleet with our lineup of truck mounted hotboxes. They are available in 2, 3, 4, 6, 8 and 10 ton capacities.

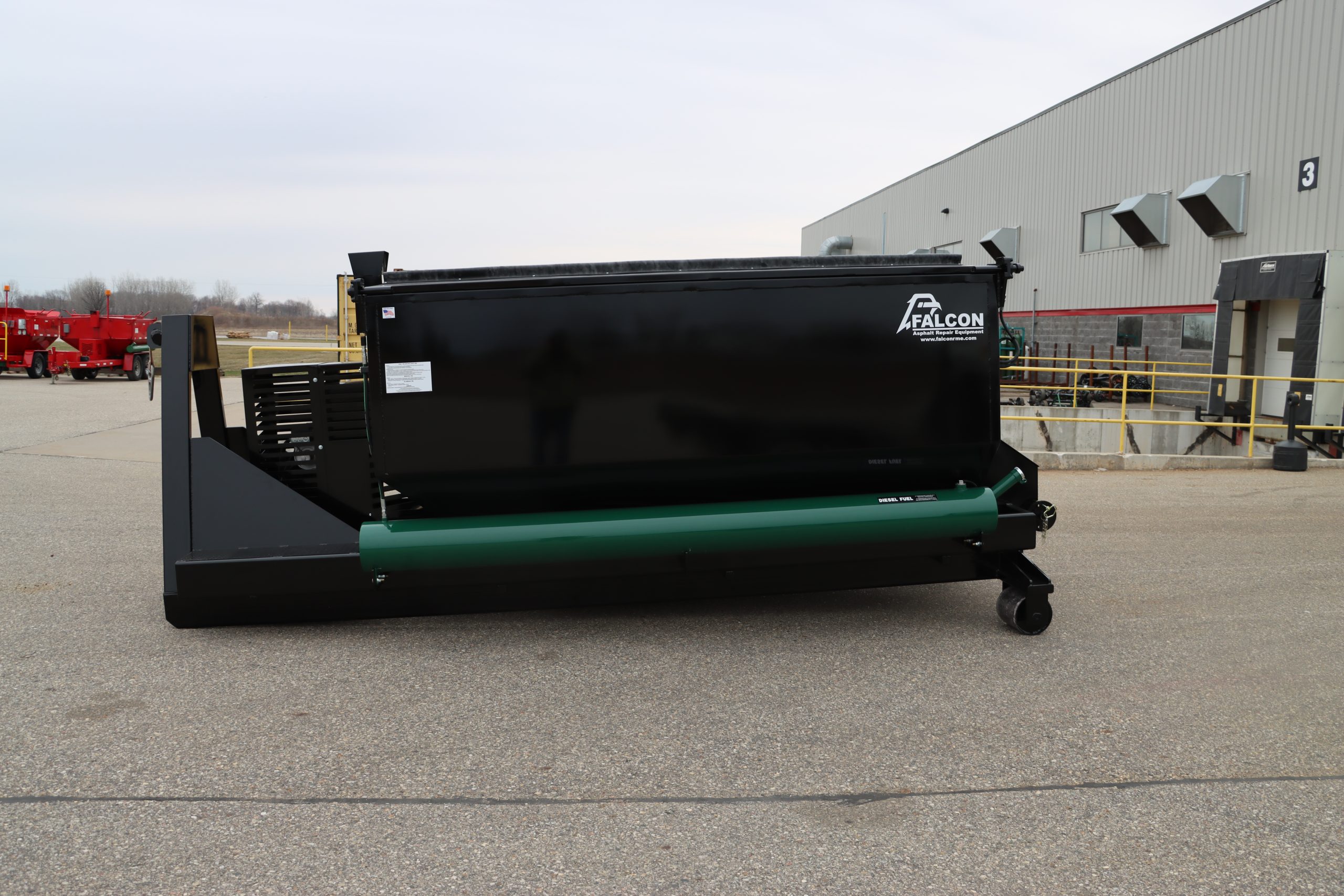

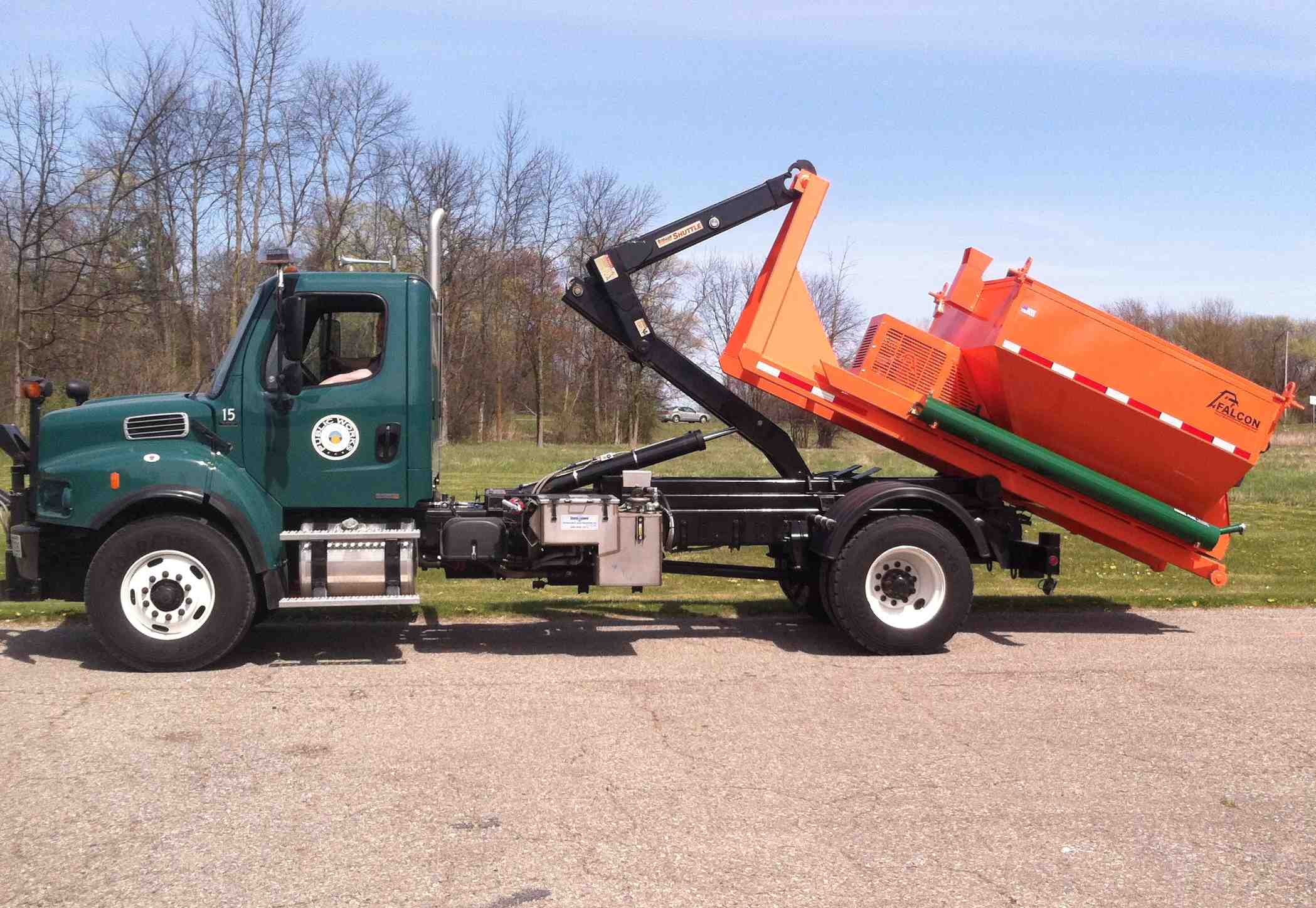

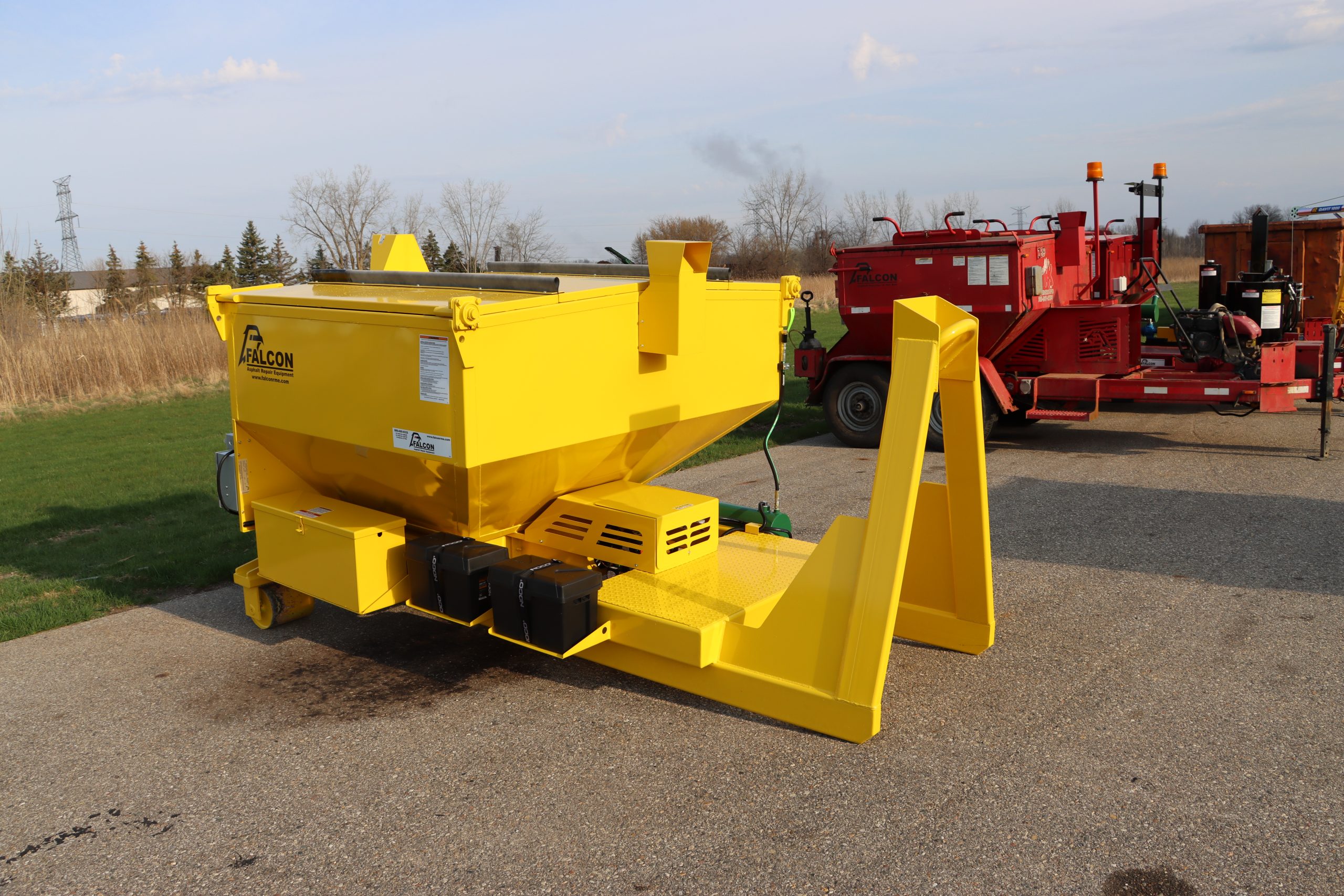

You can configure the truck-mounted hot boxes as a chassis mounted unit, hook-lift/roll off machine or our standard slip-ins that slide into the back of a dump truck. These machines can be equipped with self-dumping capability or a customized sub-frames.
Like all Falcon models, a full line of options is available at purchase or aftermarket. Optional equipment includes a timer, two-burner system (for recycling), and a wide range of other beneficial options.
Benefits of a Truck-Mounted Falcon Asphalt Hot Box
A truck-mounted asphalt hot box from Falcon will slide right into the bed of your truck and allow your crew to start making repairs quickly. Built with efficiency in mind, it will help save time and money.
You’ll be able to keep hot mix asphalt for up to 72 hours while quickly warming cold patch mix. With two diesel-fueled burners it will allow you to recycle millings, virgin uncompressed asphalt, and asphalt chunks.
You can configure the truck-mounted hotbox with a self-dumping capability or customized sub-frame for a:
How Do Truck-Mounted Recycling Machines Work?
You will need an optional two-burner system if you wish to recycle asphalt. Once you’ve securely mounted the hotbox onto your truck, follow these three simple recycling steps:
- Use a rejuvenator to coat the hardened asphalt
- Load the hopper with asphalt chunks and millings
- Set the temperature controls to the lowest possible heat setting overnight.
Returning old asphalt to its original state requires protecting the original oils it contains. Other brands of recyclers will use an open flame to heat the hardened asphalt patching directly. The high heat causes the original oils to burn off, release black smoke, and create unusable asphalt.
Falcon truck-mounted recyclers use two burners and cross ducts to distribute heat throughout the hopper evenly. The high-density insulation allows the hopper to retain the ideal amount of heat required to break down the asphalt.
Thanks to the unique construction and combustion chamber shape, a Falcon recycler boasts a 92% fuel efficiency rating—that’s less than three gallons of diesel fuel used per work shift.
Asphalt Repair Areas
The chart below will help you determine which truck-mounted Falcon hot box is right for your application.
Type | Hotbox Size | Potholes Fixed | Pothole Depth |
2-Ton | 9′ x 9′ x 4″ | 80 | 1′ x 1′ x 4″ |
3-Ton | 11′ x 11′ x 4″ | 120 | 1′ x 1′ x 4″ |
4-Ton | 12′ x 13′ x 4″ | 160 | 1′ x 1′ x 4″ |
6-Ton | 15′ x 16′ x 4″ | 240 | 1′ x 1′ x 4″ |
8-Ton | 18′ x 18′ x 4″ | 320 | 1′ x 1′ x 4″ |
10-Ton | 19′ x 20′ x 4 | 400 | 1′ x 1′ x 4″ |
Falcon Truck-Mounted Hot Boxes
A Falcon Truck-Mounted Hot Box will provide you and your work crew with the ultimate in patching equipment flexibility and versatility. You’ll be able to pick up your hot mix from the plant in the morning and keep it warm for the next 72 hours.
The wide range of customization options means you’ll have precisely what you need to get the job done right. Contact us below to speak with one of our experts to learn more about which Truck-Mounted Hot Box is right for your operation.
